Single hulls
NABWORK 1575 STEEL

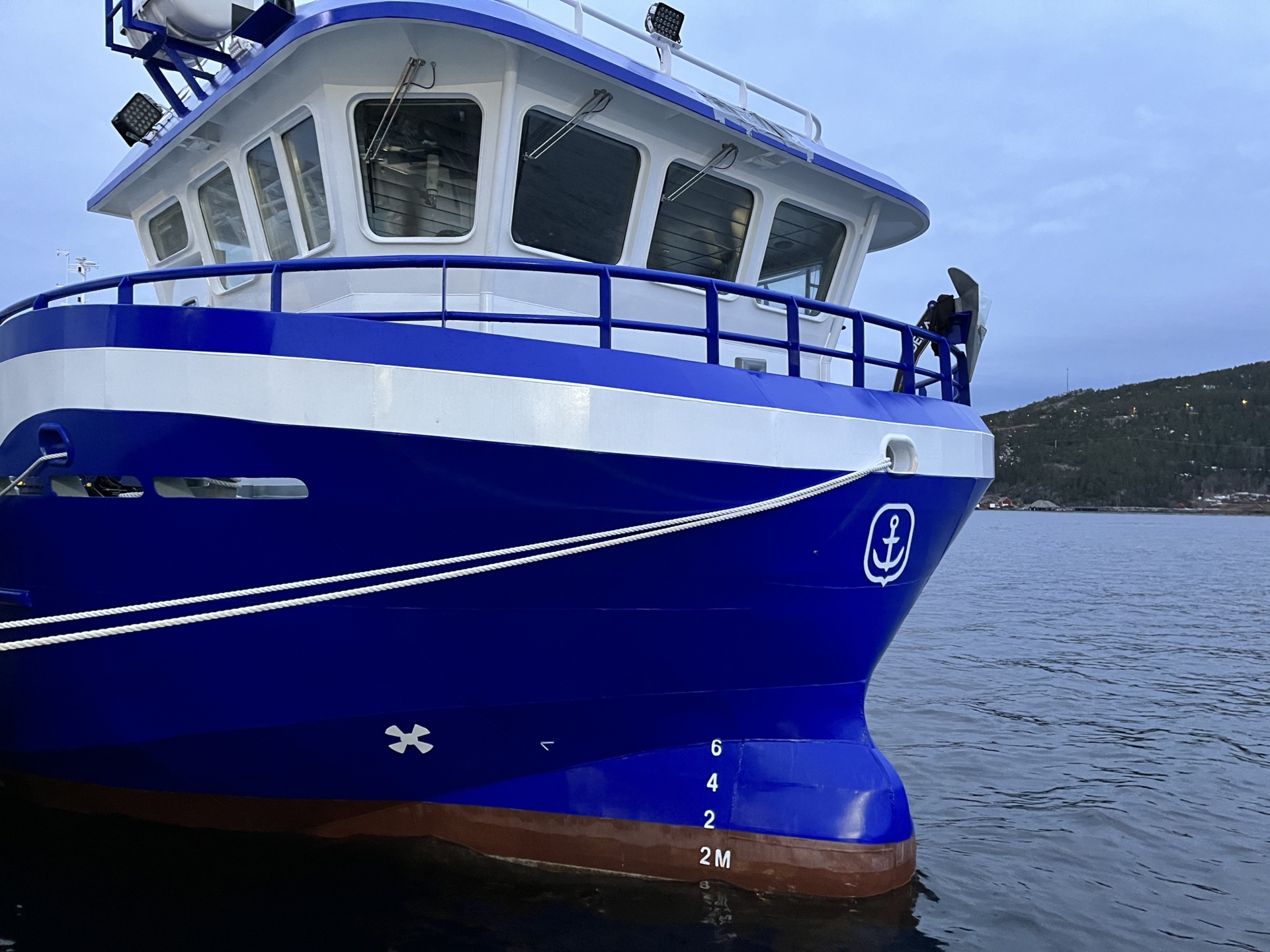

A powerful combination boat with good sea characteristics and a consistently high standard. The boat can be operated as a location boat for the exposed locations, and as a light service boat with the option of cabins on board. The boat is equipped with Scania propulsion machinery, a rotatable gear and propeller system from Nogva, a hold with a capacity of 50m3 and a Palfinger 50tm crane.
| Construction | Single hull |
| Design | Marin Design |
| Material | Steel |
Main dimensions
| Length o.a. | 14,99 m |
| Breadth o.a. | 7,50 m |
| Depth moulded | 3,20 m |
Capacities
| Fuel | 8,4 m³ |
| Water | 2,3 m³ |
| Ballasttanks | 5 pcs |
| Sea ballast | ca 18,2 m³ |
| Septic | 0,5 m³ |
| Cargo space | 50 m3 |
| Load capacity deck | Approx. 15 t |
| Gross deck area behind wheelhouse | Approx. 50 m2 |
| Speed, no payload | Approx. 9 knop w/25% filling with 100% MCR |
| Trade area | 4 |
Propulsion maschinery
| Engine | Nogva Scania D113 500 HK at 1800PRM |
| Generator | John Deere 4045 |
| Thruster | 2 x 50 hp |
| Compressor | Kaeser SK-25 compressor, 126,6 m3/t |
Navigation and communication
| Furuno radar and TimeZero PRO chart plotter with GPS |
| Furuno VHF radio class A |
| Furuno echo sounder |
| Autopilot Furuno Navpilot |
| Navtex receiver |
| mLINK Connect |
| AIS |
Crane
| Palfinger PK 50002 Rotation: Continuous Scanreco radio control |
Capstans
| 1 x 5t |
| 1 x 3t |
| Both included foot pedals and emergency stops |
Other
| Prepared for deck winch | |
| Kaeser SK-25 compressor 126,6 m3/t | |
| High-pressure washer including foam and disinfection system. Tenfjord Hycat HTS28-280 | |
| Sun screens in wheelhouse |
