NabCat 1512 HYB - Moen Marin


NabCat 1512 HYB

NabCat 1512 is a real power plug of a service catamaran designed for tough use. There is a high level of comfort on board with a large booth and bright cozy cabins. You will experience practical solutions and consistently good technical quality.

This vessel is delivered as a plug-in-hybrid as standard, but can be delivered with conventional propulsion machinery on request.

DesignMarin Design
Main dimensions
Length o.a.14,99 m
Width o.a.12,00 m
Width hull4,00 m
Depth3,80 m
Fuel13,0 m³
Water10,0 m³
Load capacity deckApprox. 80 t
Gross deck area behind wheelhouseApprox. 100m2
Speed, no payloadApprox. 11 knots
Trade area5
2 x one-man cabins
2 x two-man cabins
Propulsion machinery*
EngineDanfoss Editron PM 350kW
Energy Storage System462kWh
GearboxKumera KMG 270
Bow thrusters2 x PMH 132kW
PropellarHelseth 4H90 pitch propellar
*Can be delivered with diesel mechanical propulsion machinery on request
Catepillar C18, 500ekW, 400V60Hz
Catepillar C9.3 , 310ekW, 400V60Hz
HPU 2×64 kW w/75 ccm pumps

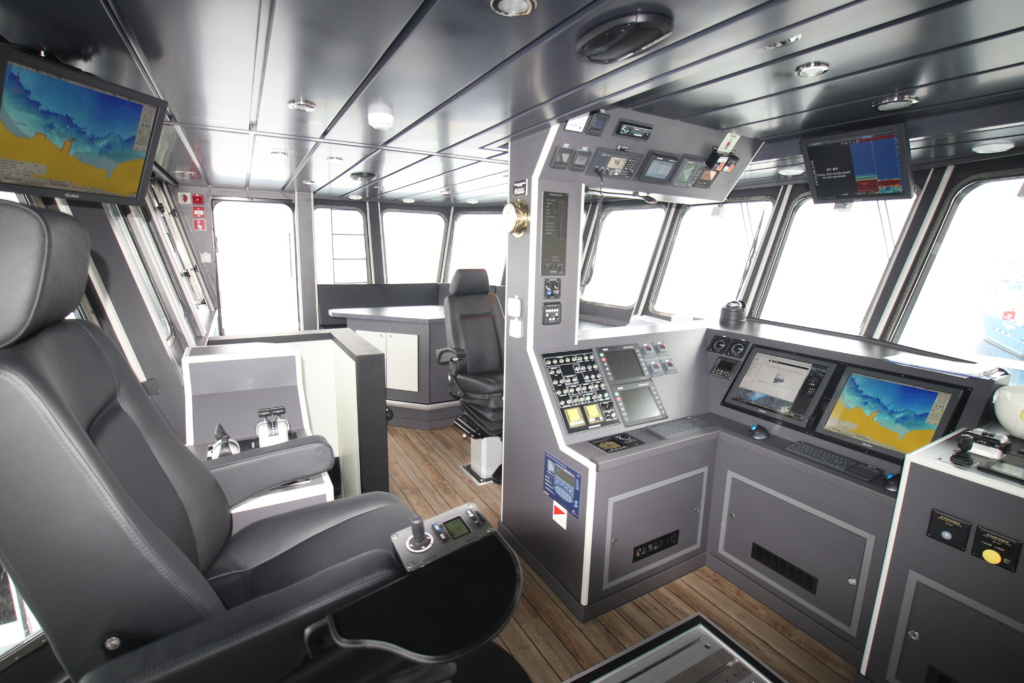

Navigation and communication
Furuno Radar and TimeZero PRO chart plotter with GPS
Furuno VHF radio class A
Furuno DFF1 Echo sounder
Autopilot Furuno Navpilot Simrad AP70
Olex and AIS
mLINK monitor
Moen IAS

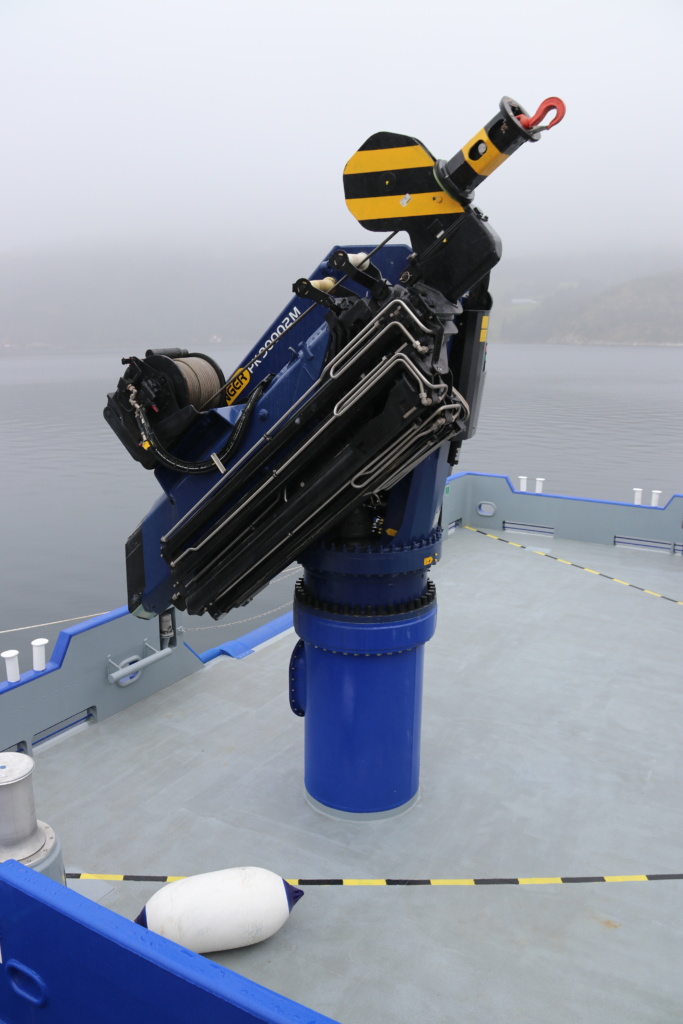

-Palfinger PK 150002 (M) G
Reach: appr. 21.5 m, with 6,5 t mounted winch
Rotation: Continuous
-Palfinger PK 41002 (M) G
Reach: 21,5 m, with 3,5 t winch (optional)
Rotation: Continuous
Both with scanreco radio control
1 x 8 t electric
2 x 5 t electric
Both included foot pedals and emergency stops
Prepared for deck equipment
