Catamarans

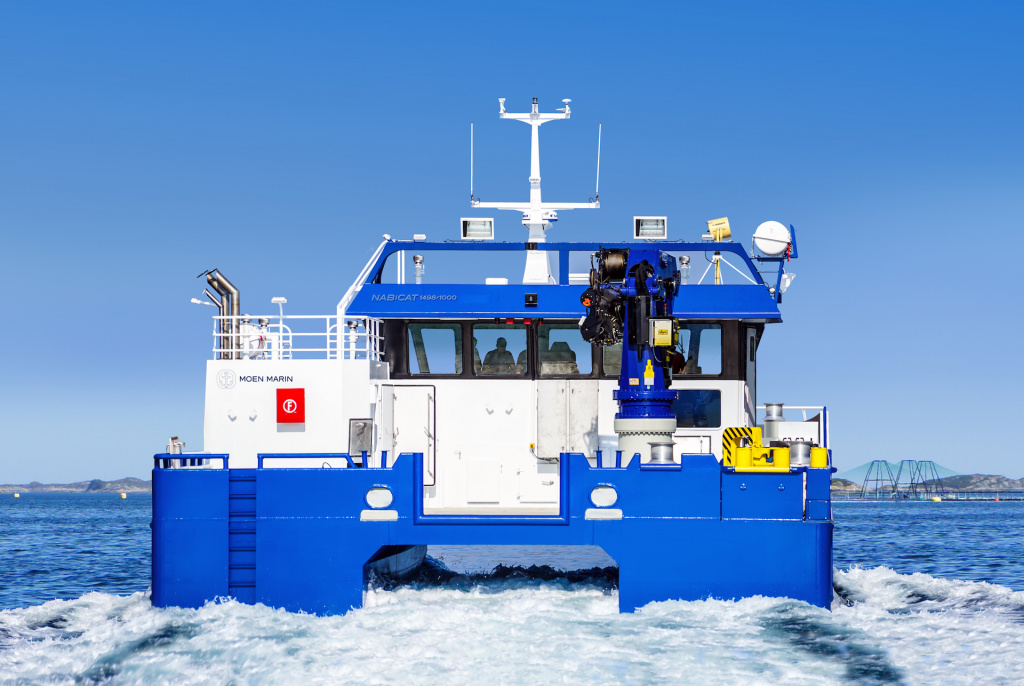

NabCat 1510 SD
A popular service catamaran designed for the aquaculture and service industries. The boat is well equipped, including Scania propulsion machinery, Nogva rotatable gear and propeller system and Palfinger 65tm crane. Effectively utilized interior space gives you access to the most needed of crew facilities. See also NabCat 1510-2etg which is one deck taller and has larger crew facilities.
| Construction | Catamaran |
| Design | Marin Design |
| Material | Aluminium or steel |
Main dimensions
| Length o.a. | 14,98 m |
| Breadt o.a. | 10,00 m |
| Breadth hull | 3,10 m |
| Depth moulded | 2,90 m |
Capacities
| Fuel | 8 m³ |
| Water | 2 m³ |
| Speed, no payload | Approx. 12 knots with 25 % filling with 100% MCR |
| Trade area | 4 |
Cabin capacity
| 1 x one-man cabin | |
| 1 x two-man cabin |
Propulsion machinery
| Engine | Nogva Scania DI 13, 500 hk |
| Gearbox | Nogva Gear, HC 258, rotating propeller system |
| Bow thruster | 2 x 50 hk |
Generator
| 230V/57 kW |
Hydraulics
| 2 x PTO with 145 ccm Parker pumps |
Navigation and communication
| Furuono Radar and chart plotter with integrated GPS |
| VHF radio Furuno |
| Furuno DDF1 echo sounder |
| Autopilot Furuno Navpilot |
Crane
| Palfinger PK 65002 G (M), reach 20,5 m with 6,5 t. winch. Delivered with radio control. |
Capstans
| 1 x 3 t |
| 1 x 8 t |
| Both included foot pedals and emergency stops |
Other
| Prepared for deck equipment |
