Catamarans

NabCat 1375

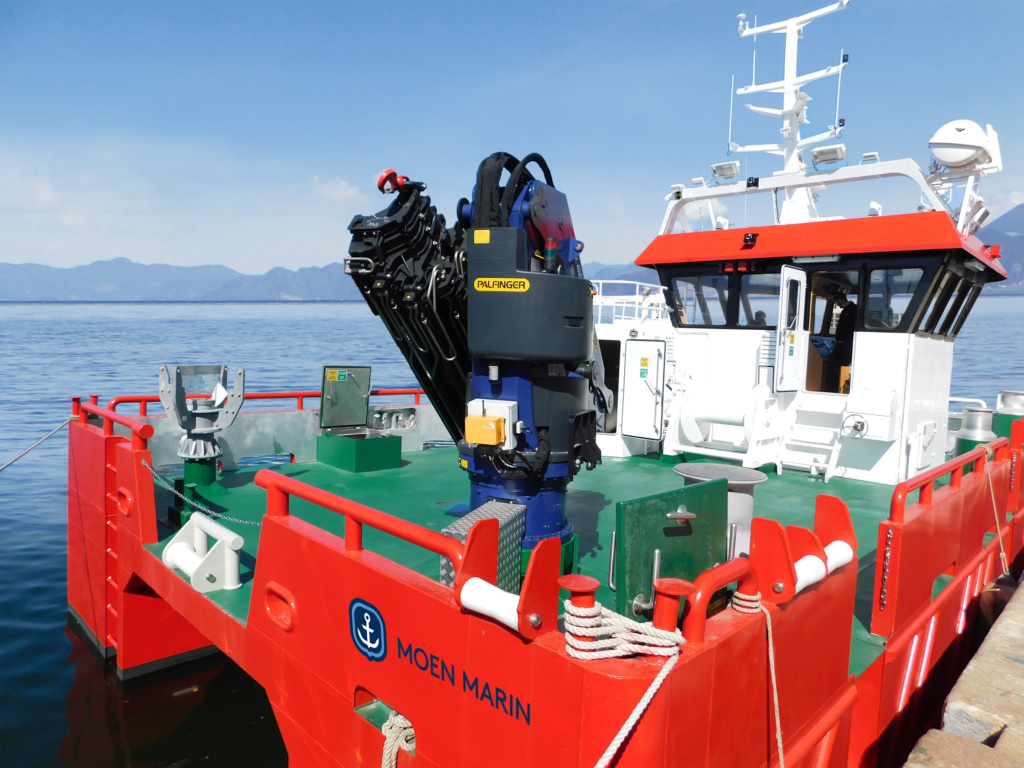

The work boat for those who need an extra powerful vessel. Same level of equipment as our best-selling NabCat1475, but with greater crane capacity, better stability and more robust build. The boat has Scania propulsion machinery, Nogva rotatable gear and propeller system and Palfinger 40tm crane.

Main dimensions
Length o.a.13,50 m
Breadth o.a.7,50 m
Breadth hull2,20 m
Capacities
Fuel4 m³
Water1,3 m³
Speed, no payloadApprox. 11 knots with 25% filling with 100% MCR
Propulsion machinery
EngineScania DI13 73M (IFN), 380 HP @2100 rpm
GearboxNogva HC-168
Bow thruster1 x 50 hk
Generator
Nanni QLS32, 23,4 kW.
Hydraulics
2 x PTO with 105 ccm Parker pumper
Navigation and communication
Furuno 15,6” radar and chart plotter with integrated GPS
Furuno echo sounder
Furuno Autopilot (NavPilot-711)
Furuno VHF (FM-8900S)
2 x Portable VHF (Jotron TR30)
Navtex receiver
Cranes
Palfinger 41002 (M) G med radiocontrol
Capacity 38,2 tm, reach 21,5 m
Capstans
1 x 3 t
1 x 5 t
Both included foot pedals and emergency stops
Others
Prepared for deck winch
